Product Name

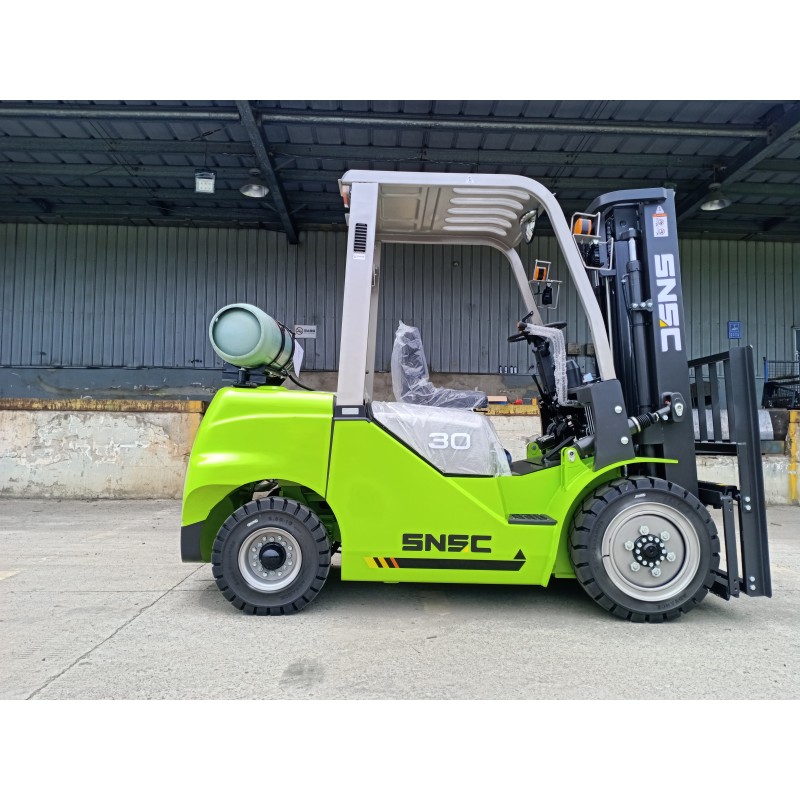

SNSC High Performance 3000kg Dual Fuel Forklift LPG Gas Engine Smooth Lifting
Product Advantages
Engineered for professional material handling, this 3 ton dual fuel forklift combines 3000 kg lifting capacity with dependable working performance
The hydraulic operating system provides controlled lifting, stable mast movement, and accurate fork response
Its heavy-duty structural design, including a reinforced frame and mast, supports reliable use over time
An ergonomic operator station with improved visibility enhances both comfort and workplace safety
Perfect for distribution centers, manufacturing sites, docks, industrial storage, and jobsite applications
Backed by a 12-month manufacturer warranty and 24-hour online technical support
Product Introduction
The SNSC 3 Ton LPG Gasoline Forklift is built for reliable use in storage, logistics, and industrial handling applications. With a rated capacity of 3000 kg, a durable body structure, and a reinforced mast, it provides stable lifting and dependable load control.
Driven by a high-efficiency LPG gasoline power system, this forklift delivers responsive performance and steady working output. Its hydraulic controls support smooth lifting and tilting functions, while the comfortable cabin layout enhances visibility and reduces operator fatigue.
Applications:
Warehouse logistics
Manufacturing areas
Construction sites
Port loading zones
Outdoor handling work
Working Principle:
The forklift uses its LPG gasoline engine to drive the hydraulic pump, which supplies pressure for mast movement. Integrated steering and braking systems help maintain controlled motion and safe operation under working load.
Product Parameters
| Specifications |
Unit |
FL30 |
| 1 |
Characteristics |
Power |
— |
LPG&GAS |
| 2 |
Rated Capacity |
kg |
3000 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
145 |
| 6 |
Forks L×W×H |
mm |
1070×125×45 |
| 7 |
Tilt Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2600 |
| 9 |
Min.ground clearance(Mast) |
mm |
120 |
| 10 |
Overhead guard height |
mm |
2170 |
| 11 |
Front overhang |
mm |
545 |
| 12 |
Performance |
Max.traveling speed(loaded) |
km/h |
20 |
| 13 |
Max.lifting speed(loaded/empty) |
mm/s |
470/520 |
| 14 |
Drawback pull/Grade ability |
kN/% |
18/20 |
| 15 |
Dimensions |
Overall length (without fork) |
mm |
2825 |
| 16 |
Overall width |
mm |
1230 |
| 17 |
Mast lowered height |
mm |
2065 |
| 18 |
Mast extended height |
mm |
4260 |
| 19 |
Chassis |
Tire |
Front |
— |
28×9-15-12PR |
| 20 |
Rear |
— |
6.50-10-10PR |
| 21 |
Wheelbase |
mm |
1800 |
| 22 |
Tread width |
Front/Rear |
mm |
1000/970 |
| 23 |
Curb weight |
None-load |
kg |
4250 |
| 24 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
12/90 |
| 25 |
Engine |
Model |
— |
XC490BPG |
| 26 |
Rated power |
kw/r.p.m |
37/2650 |
| 27 |
Rated torque |
Nm/r.p.m |
148/2000 |
| 28 |
Cylinder amount |
— |
4 |
| 29 |
Bore×Stroke |
mm |
90×105 |
| 30 |
|
Displacement |
— |
2.54 |
| 31 |
Fuel tank |
L |
70 |
| 32 |
Transmission |
— |
1/1 automatic transmission |
| 33 |
Working pressure |
MPa |
17.5 |
Description:
- Equipped with an auto electric hydraulic transmission based on TCM technology, the forklift allows quick and smooth forward and reverse shifting with simple fingertip control.
- The Japanese hydraulic system, featuring Shimadzu valves and pumps, ensures stable performance, responsive operation, and reliable working efficiency.
- An Eaton steering unit from the USA provides flexible handling, precise steering response, and improved driving comfort.
- The forklift is fitted with LED lighting, offering longer service life, lower energy consumption, and better visibility during operation.
- A copper radiator tank delivers more efficient heat dissipation, helping maintain stable performance during long working hours.
- Multiple color choices are available, including red, yellow, and green, to meet different customer preferences.
Common Optional Configurations:
- Japan Isuzu or Mitsubishi engine
- Side shifter
- Double front tires
- Solid tires
- Double air filter
- Vertical exhaust system
- Fork extensions
- Cabin
- Fork positioner
Product Pictures
After-sales service
Our Commitment to You:
- Every SNSC FD30 forklift is supplied with a 12-month warranty to support quality assurance and reliable performance.
- Through our 24/7 online customer support, assistance is available whenever questions or issues arise.
- We provide maintenance recommendations and operator instruction for better daily use and care.
- Reliable access to spare parts helps ensure smooth and continuous operation.
- Our fast-response parts service is designed to reduce downtime as much as possible.
- SNSC continues to provide lifetime support for maintenance and operation after delivery.
